Lathe Machine Price CA6166 CA6266 Gap
R184,300
All-in landed price · includes freight + SARS clearance + 15% VAT · ZAR
MOQ: 50 pieces · factory direct · order from 1
Landed Cost Calculator
1
Contact the supplier first
Confirm product spec, exact USD price, MOQ and lead time. Then paste their quoted price below to get a precise landed estimate.
- [email protected]
- 86 632 5083086
- WhatsApp: +86 150 6320 6860
- lzcncmachine.com
- 789 Tengyang West Road, Zaozhuang, Shandong, China
- Avg response: within_4_hours
Tip: tracked messaging via Trade Messenger qualifies you for our negotiated freight rates.
2
Ship the goods to our Shenzhen warehouse
Ask the supplier to deliver to our hub below. We consolidate, inspect and ship to South Africa for you.
Consignee
BestDealz Shenzhen Hub (BestDealz International)
Address (EN)
No. 101, 1st Floor, Building A1, Huafeng Century Technology Park, Gushu, Xixiang, Bao'an District, Shenzhen, China
地址 (中文)
中国 深圳市宝安区西乡街道固戍华丰世纪科技园A1栋一楼101号
Receiving hours
Mon–Sat 09:00–18:00 CST
3
Estimate the SA delivery cost
Paste the supplier's quoted price + your shipment specs. Results update live below.
4
Estimated landed cost in South Africa
Enter the supplier price + dimensions above to see the breakdown.
Supplier price (USD) $ 0.00
Supplier price (ZAR @ 16.45) R 0.00
Total CBM 0.0000 m³
+ Customs duty & import handling R 0
+ VAT 15% (SARS, on price + duty) R 0
= Product + import duties (in SA) R 0
+ Sea freight (Shenzhen → SA) R 0
+ Air freight (Shenzhen → SA) R 0
Landed cost (Sea) R 0
Landed cost (Air) R 0
Additional fees in your formal quote
included in all-in below
+ BestDealz service fee (3%) R 0
+ SA clearing & last-mile R 1,200
All-in estimate (Sea) R 0
All-in estimate (Air) R 0
≈ Per-unit (cheapest all-in) R 0
Live estimate. Values recalculate as you type — Product × FX + customs duty & handling + 15% VAT + freight. Variance vs final binding quote is typically < 5% and only changes if the supplier's pro-forma differs from your inputs.
Happy with the estimate?
Send us the supplier's pro-forma (if you have one). Our sourcing team will reply with a binding all-in quote within 1 business day. No pro-forma yet? — describe what you need on the next page and we'll help you negotiate.
How Class B sourcing works on BestDealz
One platform · Verified suppliers · Trade Assurance · End-to-end logistics — fully landed in SA
1
Message the supplier
On-platform chat — get a factory pro-forma with delivery to our Shenzhen consolidation centre.
2
Submit the pro-forma
We calculate sea/air freight, customs, 15% VAT and last-mile in ZAR — precise quote in < 24 hours.
3
Pay & we ship
One all-in payment in Rand under Trade Assurance. We handle SARS clearance and SA delivery.
4
Door-to-door
Goods land at your address in 60–70 days. Inspect on arrival.
Product Gallery
Product Description
The main performance characteristics：
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.

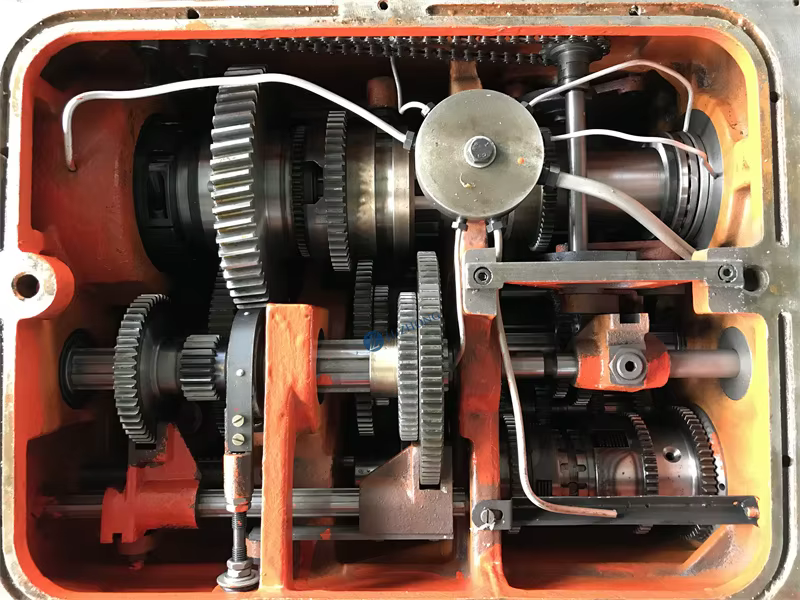

3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application：
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.

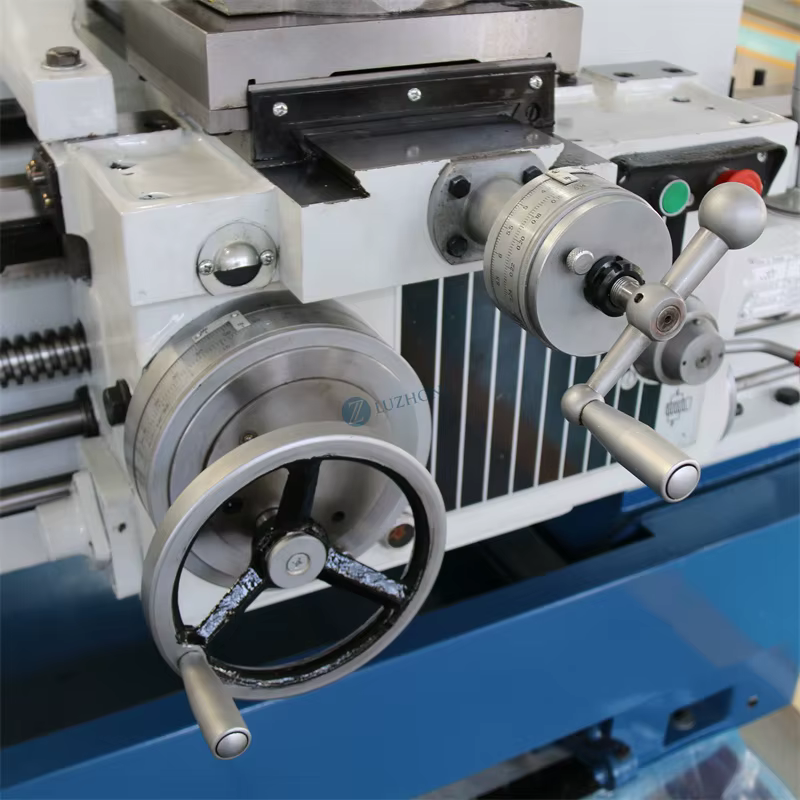

3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application：
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Specifications | CA6166 CA6166B CA6166C | CA6266 CA6266B CA6266C | |||
Max. Swing over bed | 660mm | ||||
Max. Swing over carriage | 400mm | ||||
Max. swing in gap | -- | 880mm | |||
Effective gap length | -- | 210mm | |||
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||||
Width of bed | 400mm | ||||
Section of turning tool | 25x25mm | ||||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm（24steps） | |||
Hole through spindle | 52mm. （B:80mm）. [C:105mm] | ||||
Spindle taper | NO.6（MT6）（B:Φ90 1：20）[C:Φ113 1：20] | ||||
Feed | Number of feeds | 64（kinds）（for each） | |||
Range of metric threads（kinds） | （1-192mm）44kinds | ||||
Range of inch threads（kinds） | （2-24tpi）21kinds | ||||
Range of module threads（kinds） | 0.25-48(Moduie39kinds) | ||||
Range of pitch threads（kinds） | 1-96DP（37kinds） | ||||
Tailstock | Max. tail stock spindle travel | 150mm | |||
Tail stock spindle diameter | 75mm | ||||
Taper of tail stock spindle center hole | NO.5(MT5) | ||||
Main motor | 7.5KW(10HP) | ||||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |||
Overall dimensions for1000mm | 2700x1140x1750 | ||||
Overall dimensions for1500mm | 3200x1140x1750 | ||||
Overall dimensions for2000mm | 3700x1140x1750 | ||||
Overall dimensions for2200mm | 4030x1140x1750 | ||||
Overall dimensions for3000mm | 4850x1140x1750 | ||||
Overall dimensions for4000mm | 5800x1140x1750 | ||||
Weight (kg) | Length | G.W N.W. | |||
Weight for 750mm | 2380 2260 | ||||
Weight for 1000mm | 2570 2450 | ||||
Weight for 1500mm | 2810 2640 | ||||
Weight for 2000mm | 3050 2880 | ||||
Weight for 2200mm | 3390 3180 | ||||
Weight for 3000mm | 3930 3687 | ||||
Weight for 4000mm | 4580 4200 | ||||
Details Images
Optional Configurations
Company Profile
Shandong Luzhong Machine Tool has :
● More than 80,000m² of the factory with more than 200 workers.
● Strictly QC control with more than 24 steps testing processes
● 30+ years CNC machine manufacture experience factory
● 24 hours online service at any time
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
● Strictly QC control with more than 24 steps testing processes
● 30+ years CNC machine manufacture experience factory
● 24 hours online service at any time
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
● Support ODM OEM.
● Warranty time is 18 months。
● Warranty time is 18 months。
Shandong Luzhong Machine Tool co.,Ltd. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries .
.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Contact Us
Collect stores and contact for coupons
Questions & Answers
Ask the supplier directly. Public answers benefit other buyers.
No questions yet — be the first to ask the supplier.
Shipping & logistics
BestDealz handles the full freight chain so you only deal with one party in Rand.
What's included
- Factory pickup: Our Shenzhen agent collects from supplier's warehouse
- Sea freight: FCL or LCL via verified carriers
- SARS clearance: Customs duties + 15% VAT pre-paid
- SA last-mile: Door-to-door via Aramex, Courier Guy or your carrier
- Insurance: 110% CIF cargo cover included
Estimated transit times
| Production lead time | 15–20 days |
|---|---|
| Sea freight (Shenzhen → Durban) | 20–24 days |
| SARS clearance | 3–5 business days |
| SA last-mile delivery | 1–3 business days |
| Total door-to-door | 60–70 business days |
Warranty & returns
Each unit ships with the manufacturer's warranty as disclosed by the supplier. Trade Assurance covers any pre-shipment defects.
Trade Assurance dispute resolution
If goods don't match the agreed spec or arrive damaged, raise a dispute via your BestDealz dashboard within 30 days. Funds remain held under Trade Assurance until both parties agree on resolution.
