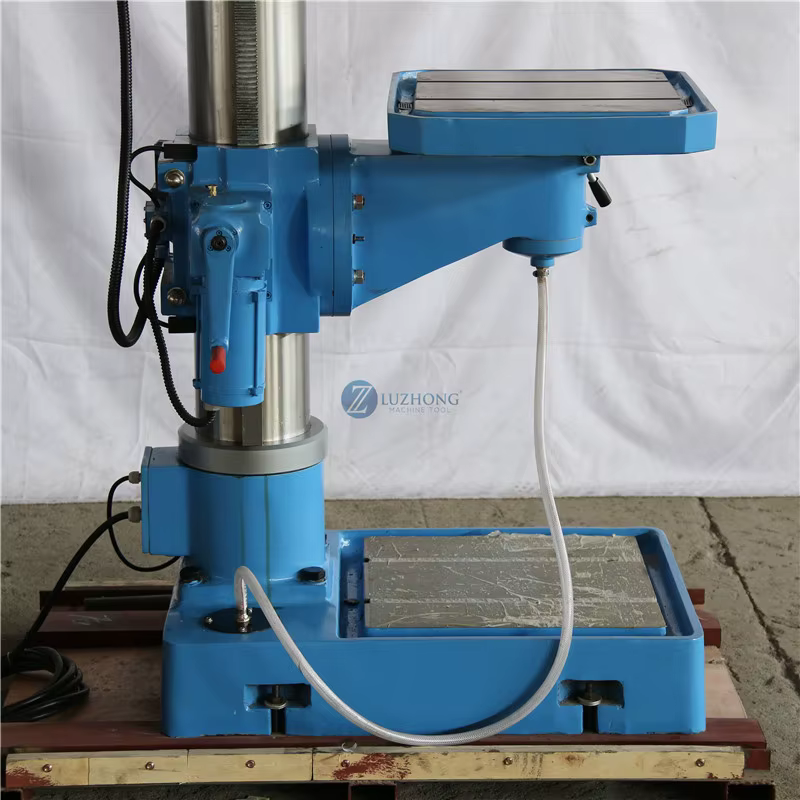

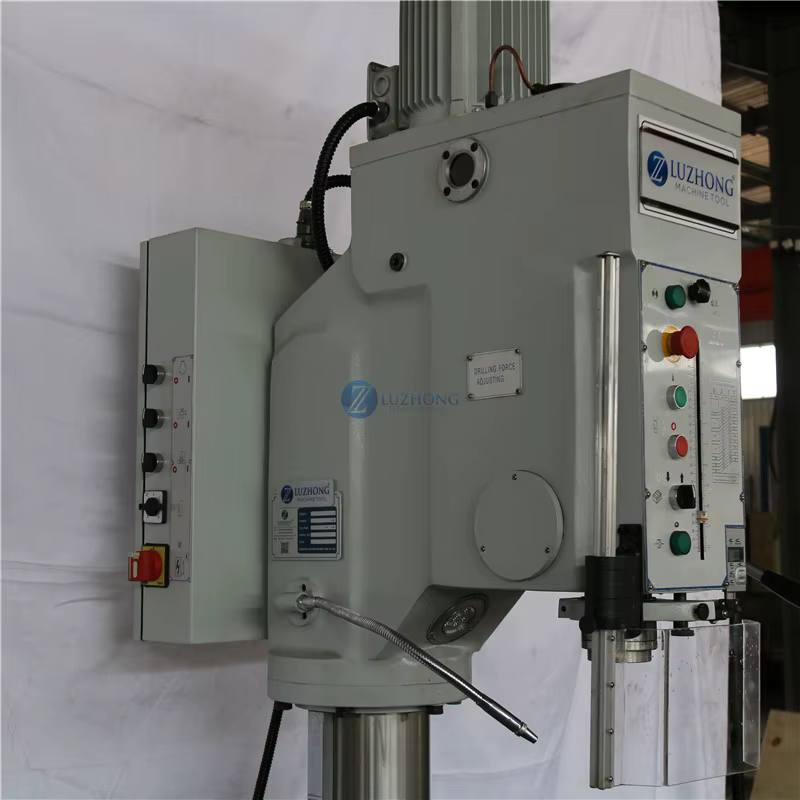

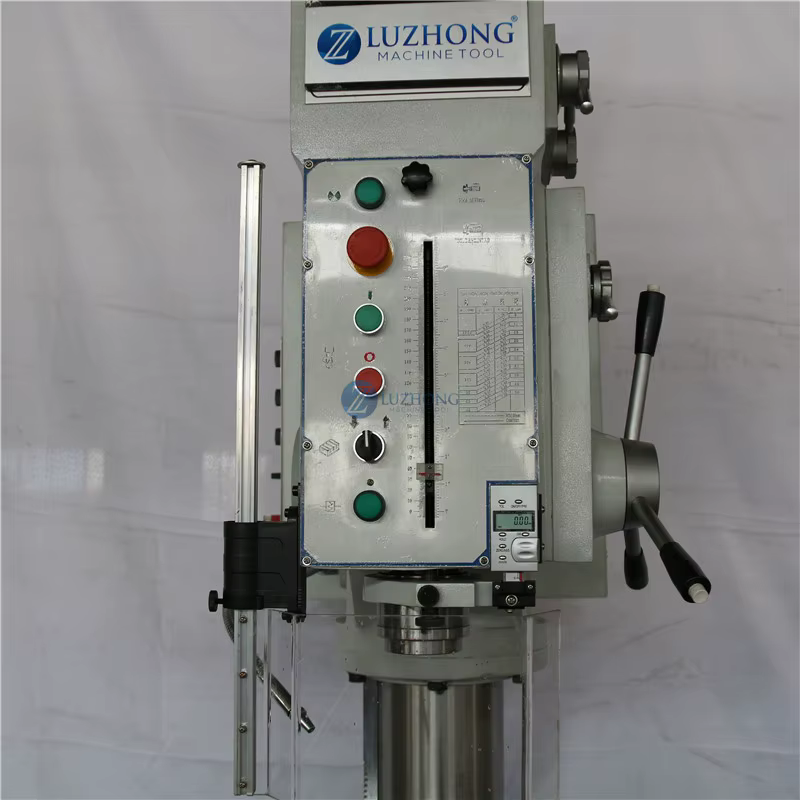

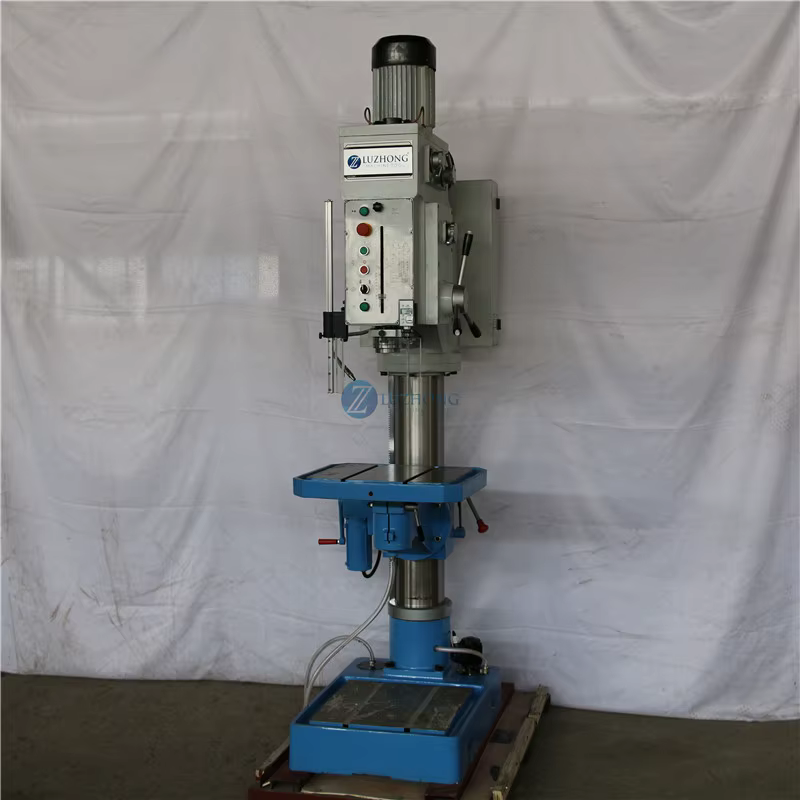

Drilling Machine For Home Z5035 Drilling

Name: Drilling Machine For Home Z5035 Drilling
SKU: 60428814227
Price: 69920 ZAR
Availability: InStock

SKU: 60428814227 | — (0 reviews)

R69,920

All-in landed price · includes freight + SARS clearance + 15% VAT · ZAR

MOQ: 50 pieces · factory direct · order from 1

Landed Cost Calculator

Contact the supplier first

Confirm product spec, exact USD price, MOQ and lead time. Then paste their quoted price below to get a precise landed estimate.

Ms. Sara Li Verified · 12y

[email protected]
86 632 5083086
WhatsApp: +86 150 6320 6860
lzcncmachine.com
789 Tengyang West Road, Zaozhuang, Shandong, China
Avg response: within_4_hours

Tip: tracked messaging via Trade Messenger qualifies you for our negotiated freight rates.

Ship the goods to our Shenzhen warehouse

Ask the supplier to deliver to our hub below. We consolidate, inspect and ship to South Africa for you.

Consignee BestDealz Shenzhen Hub (BestDealz International)

Address (EN) No. 101, 1st Floor, Building A1, Huafeng Century Technology Park, Gushu, Xixiang, Bao'an District, Shenzhen, China

地址 (中文) 中国深圳市宝安区西乡街道固戍华丰世纪科技园A1栋一楼101号

Receiving hours Mon–Sat 09:00–18:00 CST

Estimate the SA delivery cost

Paste the supplier's quoted price + your shipment specs. Results update live below.

Supplier quoted price (USD) * Quantity Product category Length per unit (cm) Width per unit (cm) Height per unit (cm) Total CBM (m³) auto from dims Actual weight per unit (kg) USD → ZAR exchange rate

Estimated landed cost in South Africa

Enter the supplier price + dimensions above to see the breakdown.

Supplier price (USD) $ 0.00

Supplier price (ZAR @ 16.45) R 0.00

Total CBM 0.0000 m³

+ Customs duty & import handling R 0

+ VAT 15% (SARS, on price + duty) R 0

= Product + import duties (in SA) R 0

+ Sea freight (Shenzhen → SA) R 0

+ Air freight (Shenzhen → SA) R 0

Landed cost (Sea) R 0

Landed cost (Air) R 0

Additional fees in your formal quote included in all-in below

+ BestDealz service fee (3%) R 0

+ SA clearing & last-mile R 1,200

All-in estimate (Sea) R 0

All-in estimate (Air) R 0

≈ Per-unit (cheapest all-in) R 0

Live estimate. Values recalculate as you type — Product × FX + customs duty & handling + 15% VAT + freight. Variance vs final binding quote is typically < 5% and only changes if the supplier's pro-forma differs from your inputs.

Happy with the estimate? Send us the supplier's pro-forma (if you have one). Our sourcing team will reply with a binding all-in quote within 1 business day. No pro-forma yet? — describe what you need on the next page and we'll help you negotiate.

pieces Factory direct · 60–70 day delivery

Get landed-cost quote Sign in to message supplier

Trade Assurance

100% buyer protection

On-time shipmentRefund if supplier misses agreed date

Quality guaranteePre-shipment inspection by BestDealz

Secure paymentFunds held until you confirm receipt

Door-to-door SASARS clearance + last-mile delivery

Direct supplier accessEmail, phone & WhatsApp included

Returns policy Shipping policy Trade Assurance

✓ POPIA ✓ CPA PCI-DSS 🌱 Carbon-conscious

Ms. Sara Li

South Africa · 1 yrs

Verified Supplier Trade Assurance POPIA

Replies within 4h 94% response rate

★

Rating

Reviews

98%

On-time

Conversations stay on BestDealz — all messages tracked under Trade Assurance protection. Bilingual EN ↔ 中文 support included.

How Class B sourcing works on BestDealz

One platform · Verified suppliers · Trade Assurance · End-to-end logistics — fully landed in SA

Message the supplier

On-platform chat — get a factory pro-forma with delivery to our Shenzhen consolidation centre.

Submit the pro-forma

We calculate sea/air freight, customs, 15% VAT and last-mile in ZAR — precise quote in < 24 hours.

Pay & we ship

One all-in payment in Rand under Trade Assurance. We handle SARS clearance and SA delivery.

Door-to-door

Goods land at your address in 60–70 days. Inspect on arrival.

Product Gallery

Product Description

The main performance characteristics:
1 .Novel design and beautiful appearance, the structure of the chips, a wide range of variable speed.

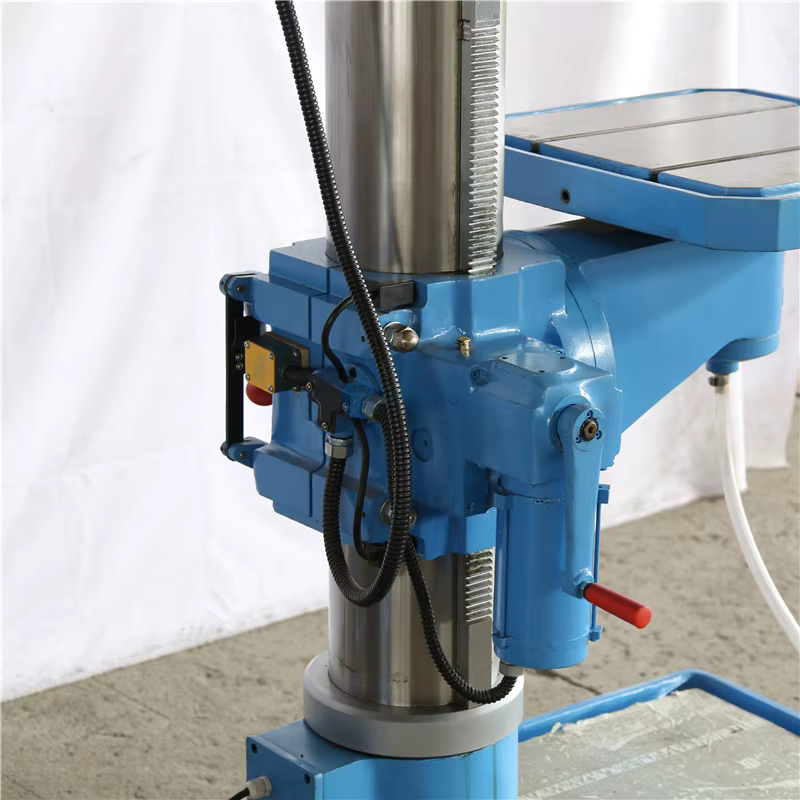

2 .Unique working table, electric (Z5035)and manual lifting mechanism, easy to operate.
3. the table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.
5 .Electrical system to implement the IEC electrical standards, with a short circuit and overload protection function, the main
motor power large.
6 .Unique protective devices, safe and reliable.

Product main technical Specifications:

Specifications	Units	Z5030	Z5035
Max. Drilling capacity	mm	30	35
Max. Tapping capacity	mm	M20	M24
Diameter of column	mm	120	140
Spindle travel	mm	135	160
Distance spindle axis to column generating line	mm	320	330
Max. spindle nose to table	mm	550	590
Max. spindle nose to base	mm	1100	1180
Spindle taper		MT3	MT4
Spindle speeds range	r/min	65-2600	75-2500
Spindle speeds series		12	12
Spindle feeds	mm/r	0.1 0.2 0.3	0.1 0.2 0.3
Dimension of worktable surface	mm	500x440	500x440
Table travel	mm	490	550
Dimension of base table	mm	400x390	400x390
Overall height	mm	2050	2300
Spindle motor power	K w	0.85/1.1	1.5/2.2
Coolant motor	w	40	40
G.W/N.W	kg	495/450	595/545
Packing dimension	cm	108x62x215	108x62x220

Details Display

Product Description

SPECIFICATIONS	Units	VMC1160
Table size	mm	1200*600
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Max. worktable load	kg	1000
T slot(number-width*pitch)	-	5-18*100
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40
Main motor power	kw	11
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-8000
Guide rail type	-	Linear rail
Distance from spindle axis to column surface	mm	650
Distance between spindle nose and table surface	mm	120-720
Positioning accuracy	mm	0.0075
Repeat positioning accuracy	mm	0.005
Tool magazine	-	Arm 24
Max. tool diameter	mm	78/120
Max. tool weight	kg	8
Machine weight	kg	6800
Overall dimension(LWH)	mm	340025002960

VMC Machine Standard Details

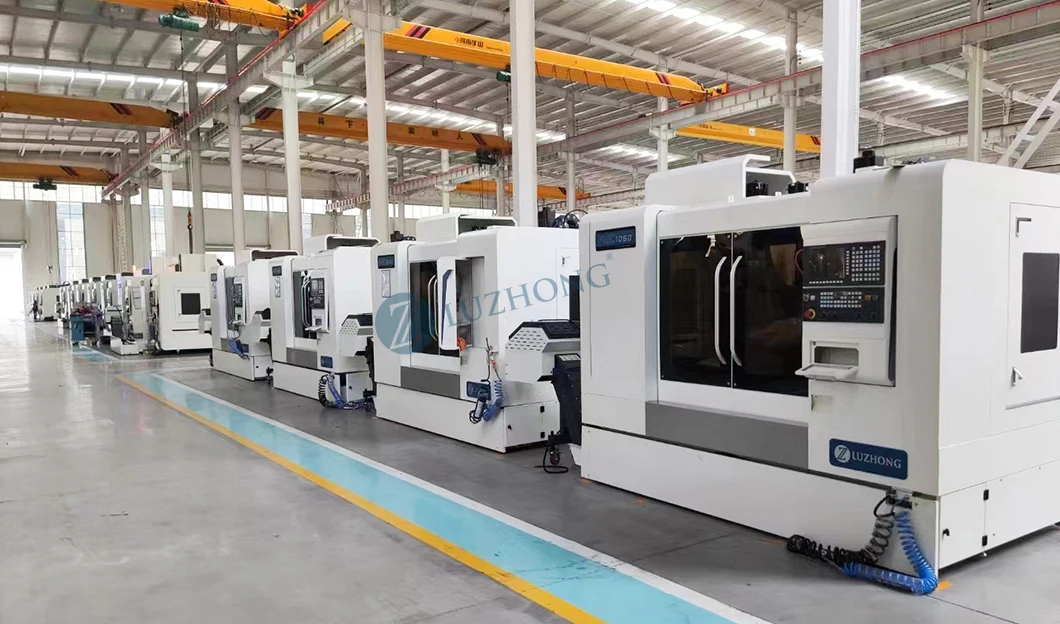

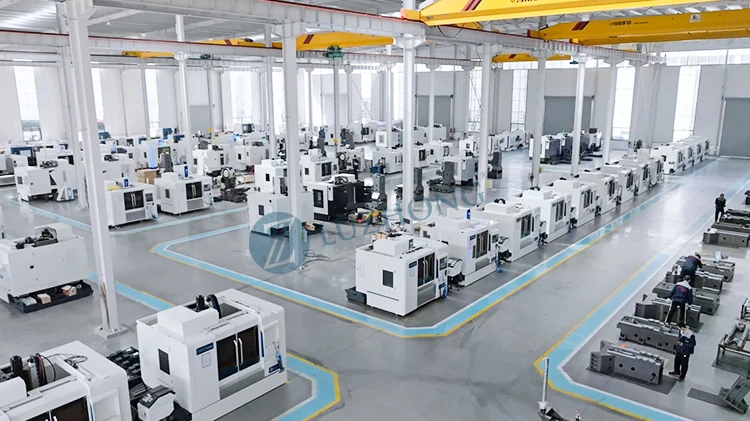

Company Profile

Shandong Luzhong Machine Tool has :

● More than 80,000m² of the factory with more than 200 workers.
● Strictly QC control with more than 24 steps testing processes
● 30+ years CNC machine manufacture experience factory
● 24 hours online service at any time
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.

● Support ODM OEM.
● Warranty time is 18 months。

Shandong Luzhong Machine Tool co.,Ltd. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries .

.

Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
